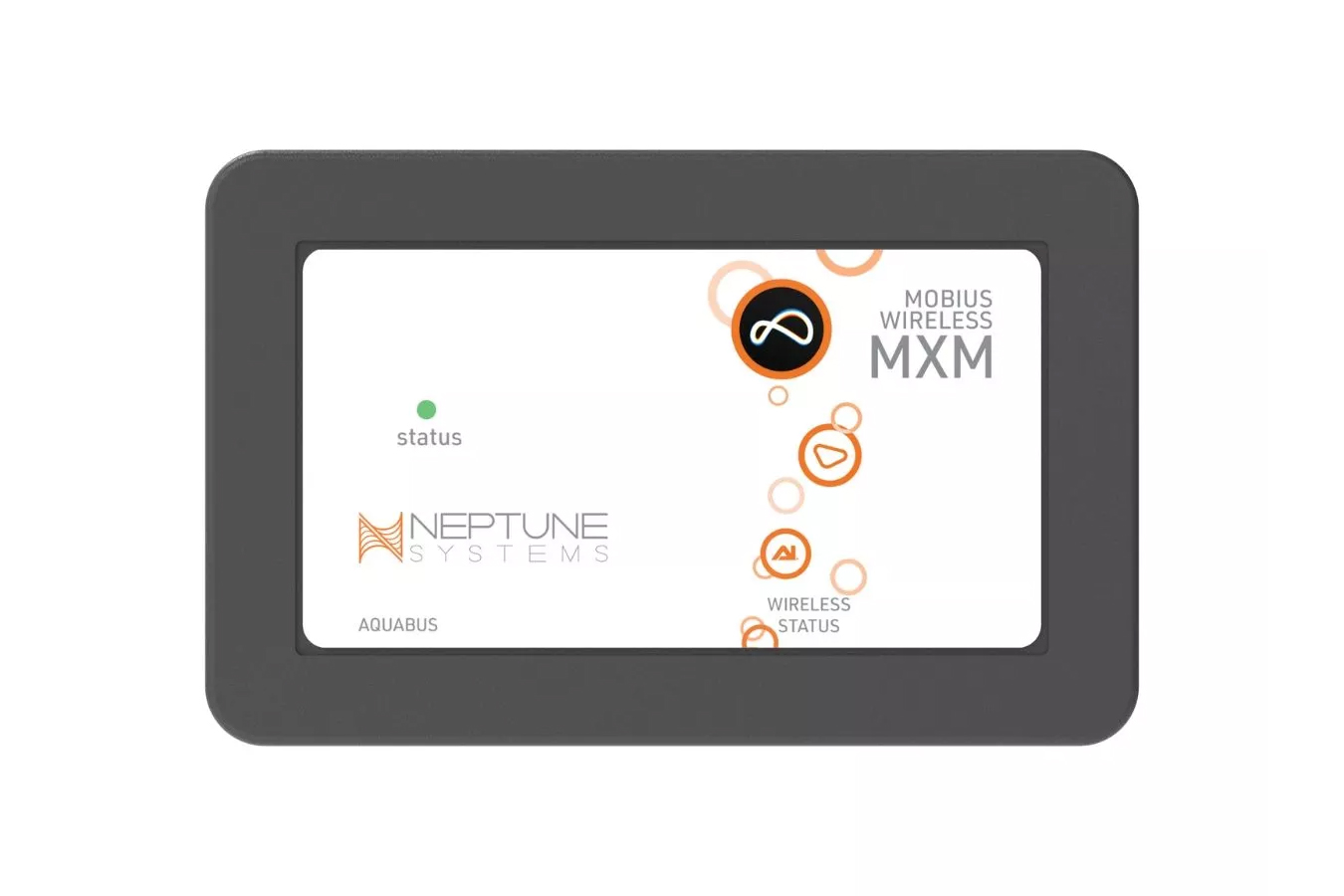

Neptune Systems MXM Mobius Wireless Control Module

The MXM (Mobius Control Module) bridges Neptune Systems’ Apex ecosystem with EcoTech Marine and AquaIllumination (AI) products, allowing you to wirelessly control up to 25 Mobius-compatible devices directly through Apex Fusion.

This integration eliminates the need to switch between multiple apps. With MXM, you can manage your lighting, pumps, and dosing equipment from EcoTech, AI, and Neptune — all within one system.

Requires an Apex A2 or A3 Series Controller.

Key Features

• Wirelessly connect and control EcoTech Marine and AquaIllumination equipment

• Seamless automation and scheduling via Apex Fusion

• Compatible with all Apex A2 and A3 Controllers

• Supports up to 25 Mobius devices

• Unlock advanced automation options using a single interface

Why Use MXM?

The MXM allows you to include EcoTech and AI equipment in all Apex-triggered routines such as:

• Feed modes (e.g. pulsing Vortech flow, reduced lighting, pump shut-off)

• Lighting schedules and moonlight simulation

• Equipment shutdowns for maintenance

• Tank-wide automation sequences

For example, a single Apex command can:

• Reduce flow on your Vortech MP40

• Dim your Radion lighting

• Pause your skimmer

• Begin an automated feeding cycle with your AFS

• Resume all equipment after a set period

MXM unifies Neptune Systems, EcoTech, and AI into a single, cohesive control experience.

Compatible Devices

EcoTech Marine:

• Radion XR15 & XR30 (Gen 5 and Gen 6)

• Vortech MP10, MP40, MP60 (MQD Series)

• Vectra S2, M2, L2 (Series 2)

AquaIllumination:

• Hydra HD Series (32 HD, 64 HD, Edge 44HD, Edge 68HD)

• Prime 16HD (Reef, Freshwater, Sol, Fuge)

• Nero Series (Nero 3, Nero 5, Nero 7)

• Blade LED (Grow, Glow, Freshwater, Refugium)

• Orbit 2, Orbit 4

• Axis Pumps (Axis 20, 40, 90)

Compatible with Apex A3 Series (Pro, Apex, Jr) and Apex A2 Series (Apex, EL).

Setup Process

1. Pair your EcoTech or AI devices using the Mobius app

2. Release Mobius control to the MXM

3. Access and configure settings via Apex Fusion

No complex programming required — Apex Fusion guides you through the process.

Specifications

• Max Devices: 25 Mobius-compatible units

• Connectivity: 1x AquaBus Port

• Power: Supplied via AquaBus

• Compatibility: Apex A2 and A3 Series Controllers

What’s Included

• 1x MXM Module

• 1x 0.9 m (3 ft) AquaBus Cable

  Note: Mobius-compatible devices must be configured via the Mobius app before linking to Apex Fusion. Apex A2 or A3 Series Controller required.
