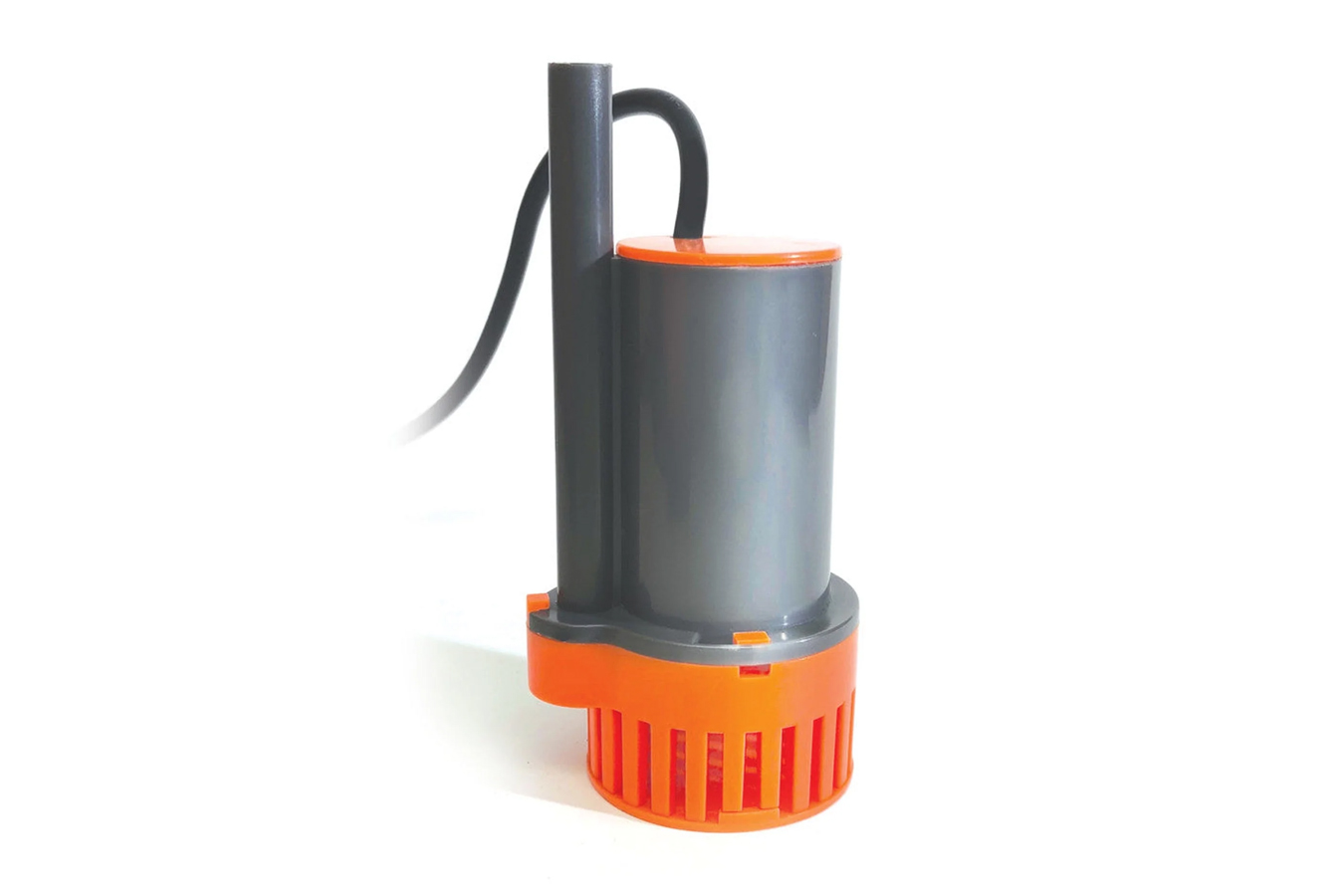

Neptune Systems PMUP v2

The PMUP v2 (Practical Multi-Purpose Utility Pump) is a compact, efficient DC pump designed for multiple aquarium applications — including auto top-off (ATO), media reactors, and dosing systems.
With enhanced safety features, including run-dry and over-temperature protection, the PMUP v2 is a durable and intelligent solution for both saltwater and freshwater systems.

Requires an Apex Controller (any model) and either a 1LINK module or EB832 with a DC24V accessory port. For non-Apex systems, use the standalone PMUP with Power Supply.

Key Features

• Ideal for ATO, carbon, GFO, and biopellet reactors

• Pushes water up to 4.3 m (14 ft) vertically

• Auto shut-off when pump runs dry

• Over-temperature protection

• Energy efficient – uses less than 17W

• Compact vertical design with bottom intake

• Removable intake screen for easy maintenance

• Smooth 9.5 mm (⅜”) output fits common tubing and push-connect fittings

• For saltwater and freshwater use

Applications

Auto Top-Off (ATO)

The most popular use for the PMUP v2. With its powerful head pressure, it can deliver RO/DI water from:

• Under-tank reservoirs

• Remote water storage rooms

• Even one level below the aquarium (e.g. a garage or utility room)

Its drop-in design is perfect for water jugs or ATO reservoirs, and it integrates directly into Apex-controlled ATO systems.

Media Reactor Circulation

Use the PMUP v2 to power small-to-medium:

• Carbon reactors

• GFO media filters

• Biopellet reactors

Its low wattage makes it an efficient and low-heat alternative to bulky AC powerheads for reactor circulation.

Smart Design

• Removable intake screen prevents debris ingress and simplifies cleaning

• Quiet operation with compact footprint

• Reliable performance with minimal power draw

• Designed for long service life, unlike typical disposable ATO pumps

Specifications

• Dimensions: 11.6 cm (H) x 5.7 cm (Diameter)

• Max Flow Rate: 378 L/h (100 GPH)

• Max Head Height: 4.3 m (14 ft)

• Power Draw: 17W

• Output Fitting: Smooth 9.5 mm (⅜”) barb

What’s Included

• 1x PMUP v2 Multi-Purpose Utility Pump

Requires Neptune Apex Controller and a 1LINK module or EB832 with DC24V accessory port. Not compatible as a standalone pump unless used with a separate Neptune-supplied power supply.
